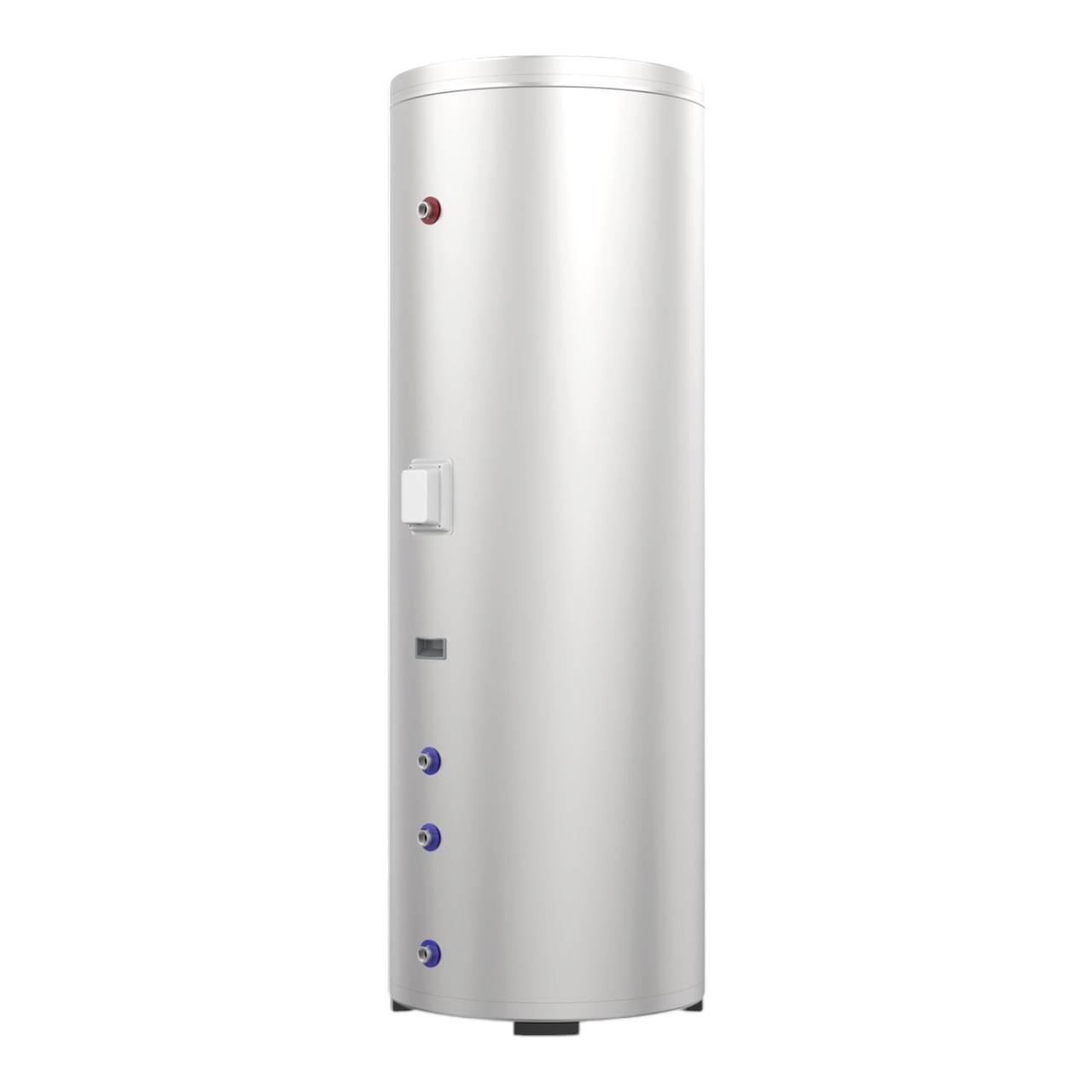

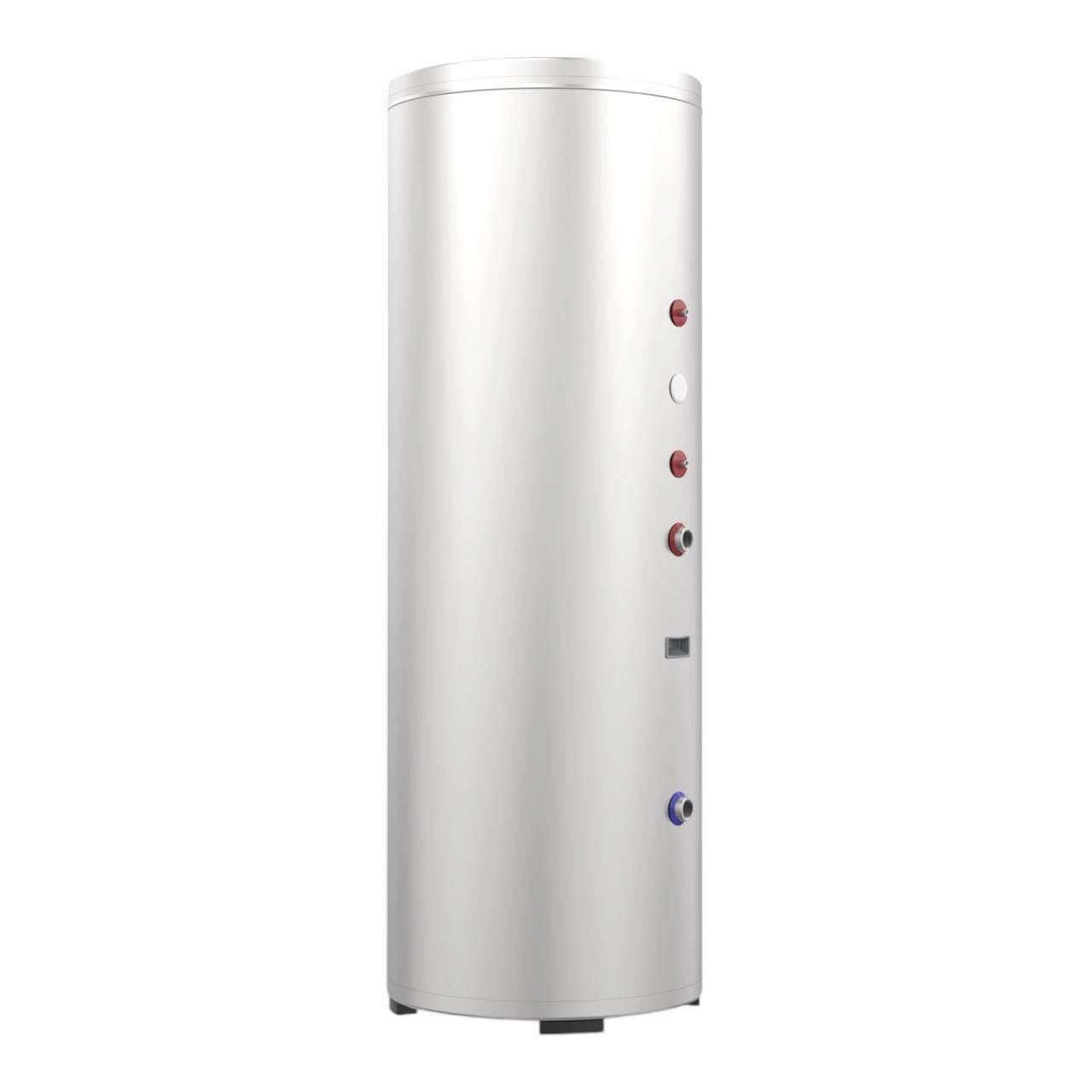

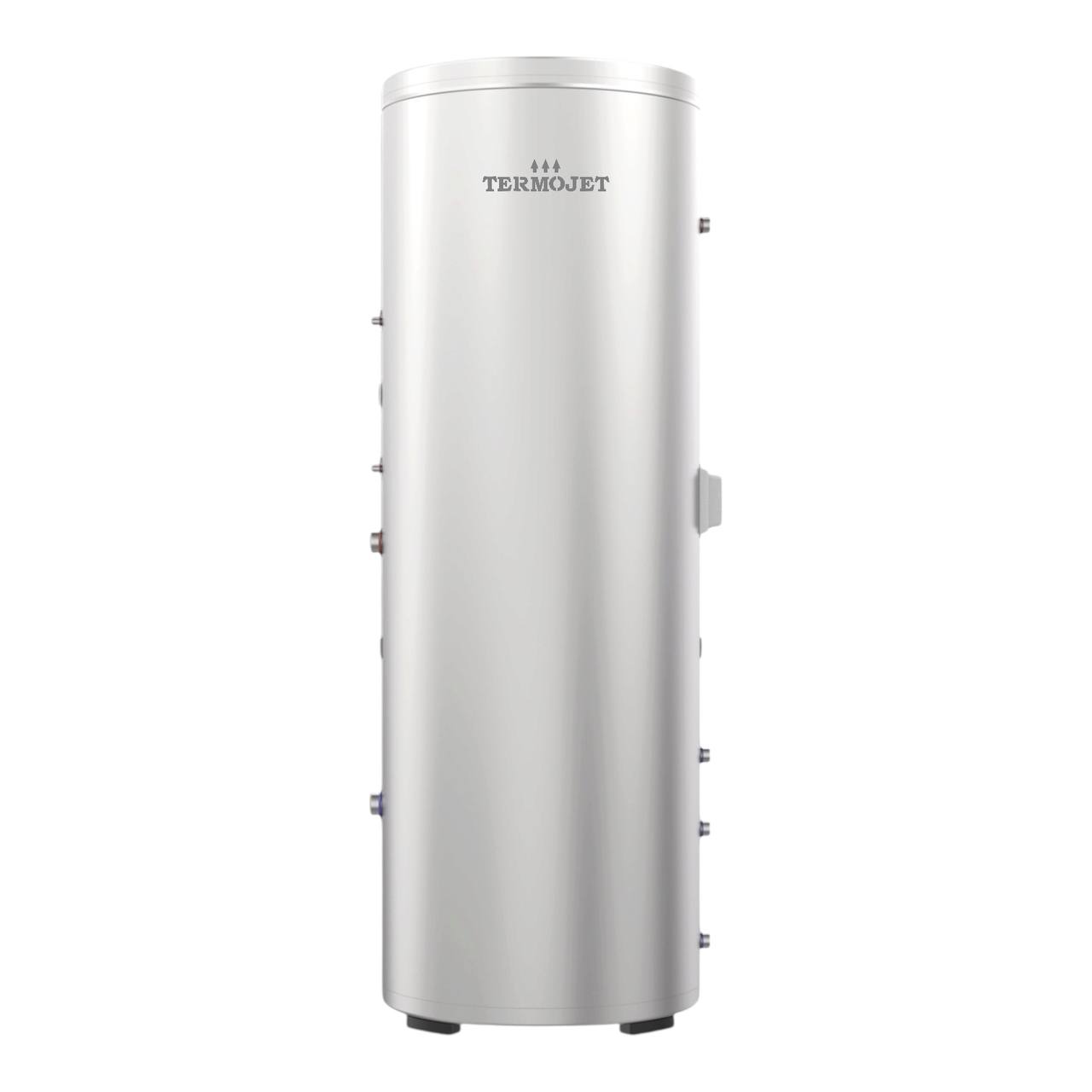

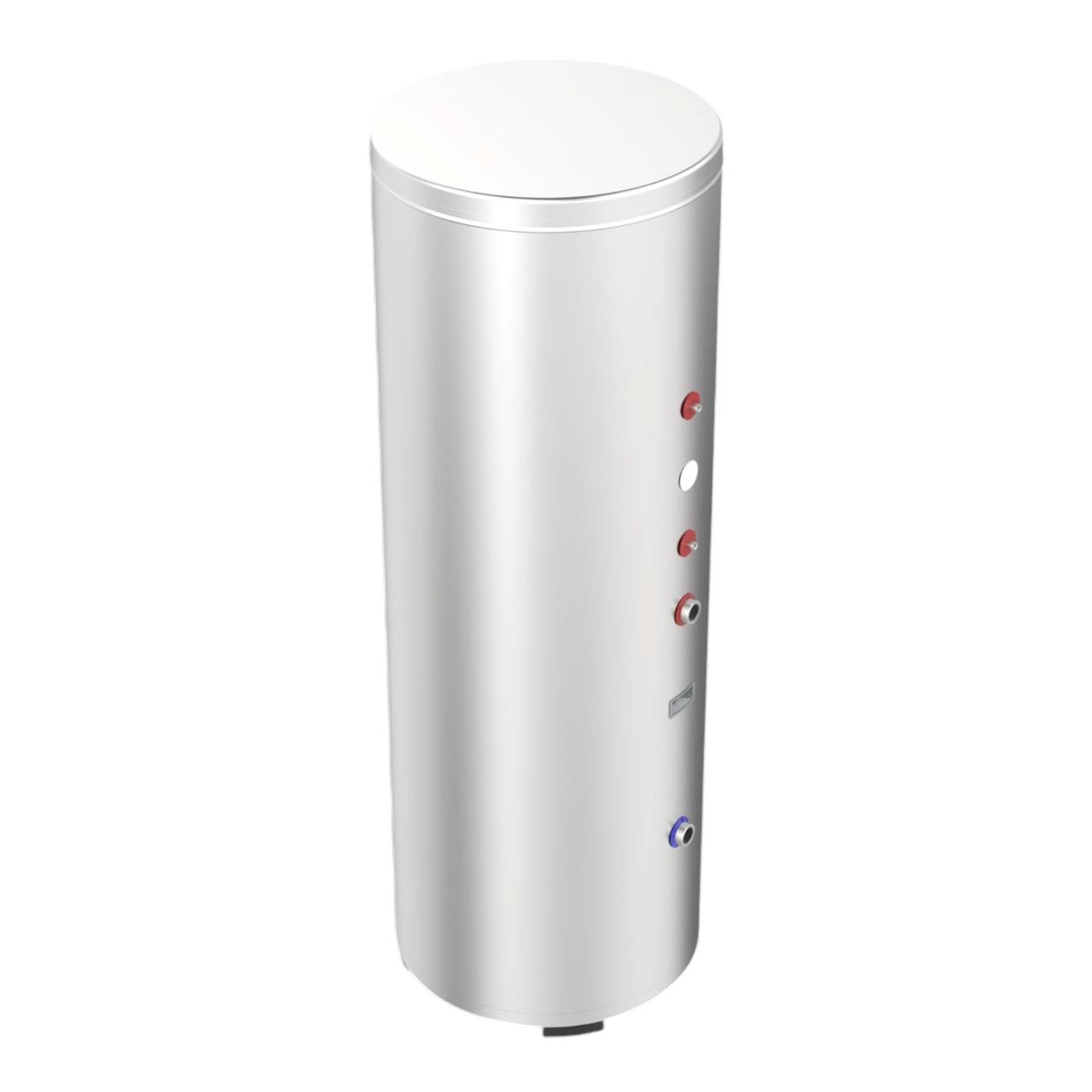

Stainless Steel DHW Cylinder Termojet 200L NE-F200WTHMIC6-SG
Stainless Steel DHW Cylinder Termojet 200L NE-F200WTHMIC6-SG by Termojet. DHW cylinders for heat pump systems. Stainless steel or vitreous enamel inner tank. Warranty, delivery across Ukraine.
Description
Monovalent indirect-heating cylinder with an enlarged heat exchanger for continuous hot water supply in residential buildings. Specially designed for use with heat pumps.
Specifications
| Type | Indirect DHW cylinder (for HP) |
|---|---|
| Material | Stainless steel |
| Max. pressure | 1 MPa (10 bar) |
| Макс. температура | 95°C |
| Heating element | 2 kW, 220V/1Ph/50Hz |
| Inner tank material | SUS304 (stainless steel) |
| Outer tank material | Coated plate |
| Розмір теплообмінника | Ø25×22 m |
| Heat exchanger area | 1.72 m² |
| Water circuit connection | G1″ |
| Max. working pressure | 10 bar |
| Max. operating temperature | 95°C |
| Recirculation connection | G3/4″ |
| Sensor connection | M12 |
| Electric heater | 2 kW |
| Corrosion protection | Magnesium anode |
| Net dimensions | Ø480 × 1725 mm |
| Net weight | 52 kg |
| Volume | 200 L |
| SKU | 52083200 |
